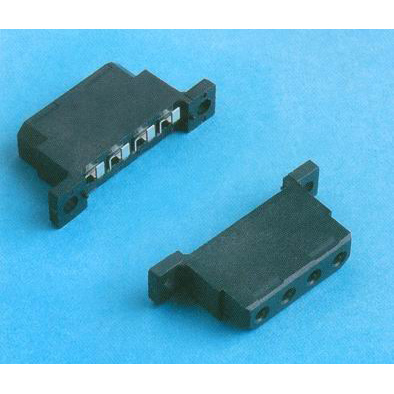

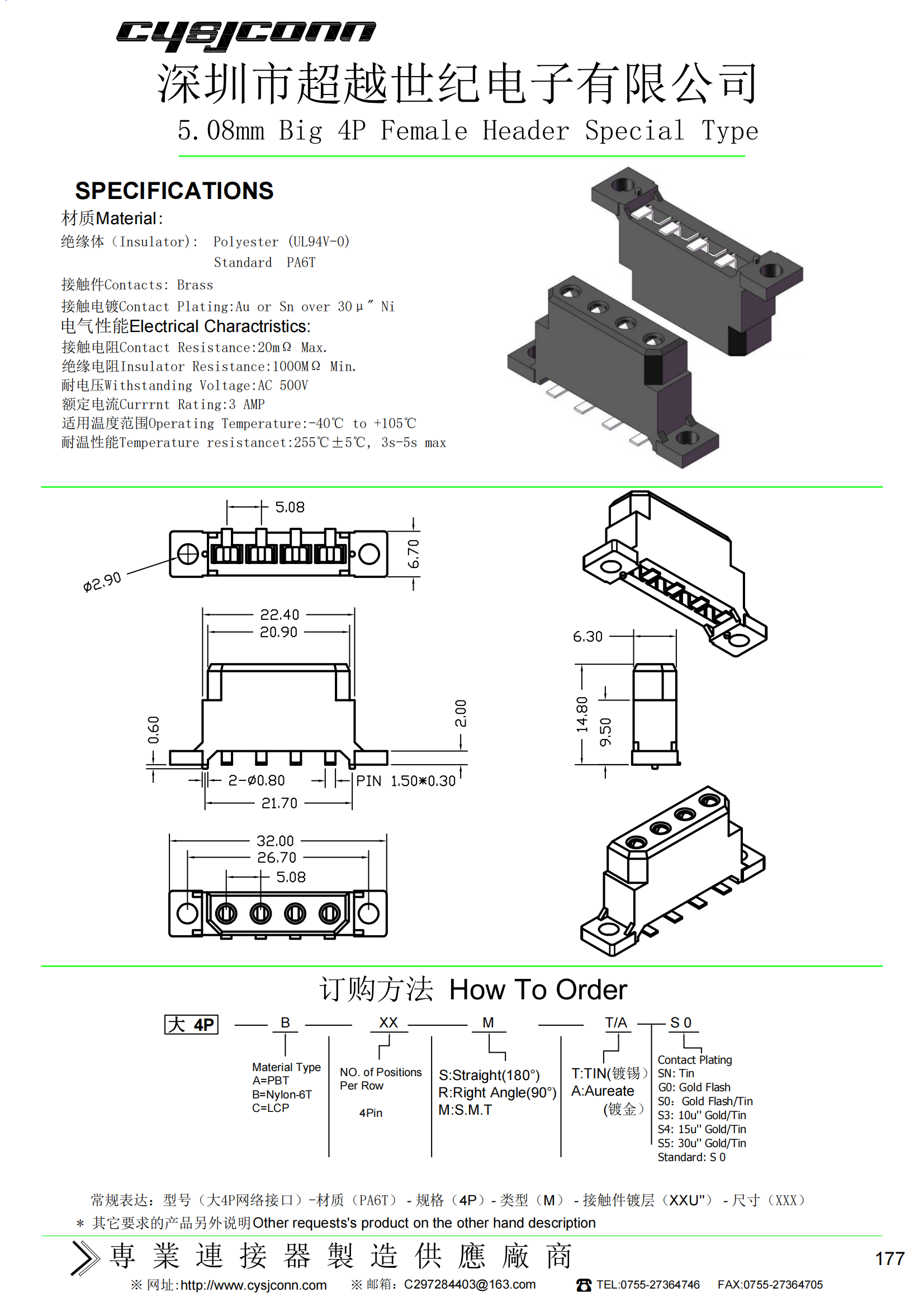

5.08mm Big 4P Female Header, Special Type for Internet Socket

Product Image
Product Image
Product Image
Product Image
Product Image

5.08mm Big 4P Female Header, Special Type for Internet Socket

Product Description


Material:
Insulator: Polyester (UL94V-0), Standard: PA6T Black
Contacts: Phosphor Bronze/Brass
Contact Plating:Au or Sn over 30μ" Ni

Electrical Charactristics:
Contact Resistance:20mΩ Max.
Insulator Resistance:1000MΩ Min.
Withstanding Voltage:AC 500V
Currrnt Rating:3 AMP
Operating Temperature:-40℃ to +105℃
Temperature resistancet:255℃±5℃, 3s-5s max
