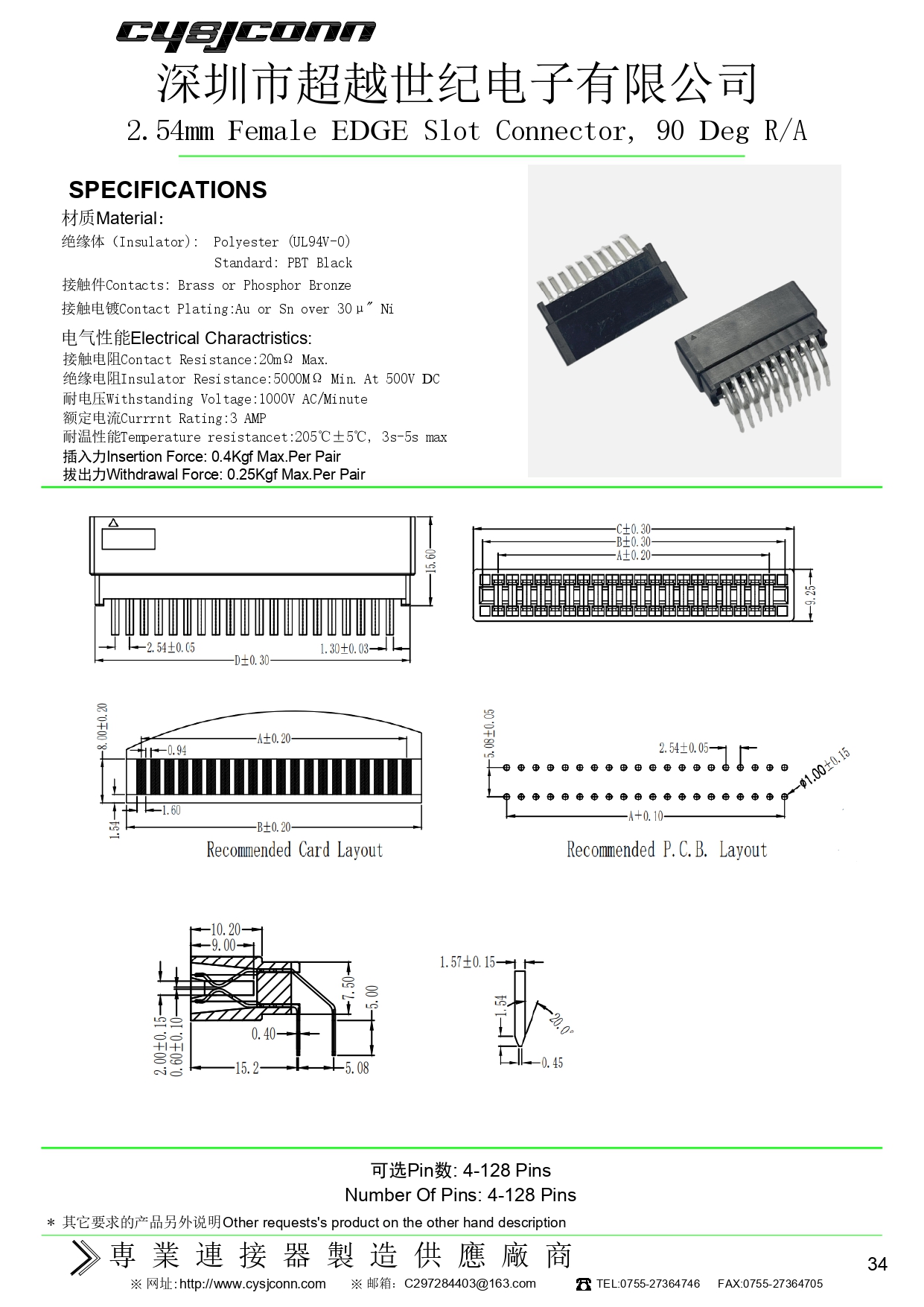

2.54mm EDGE Slot Connector, 90 Degree R/A, 4-128pins

2.54mm EDGE Slot Connector, 90 Degree R/A, 4-128pins

---

Material:
Insulator: Polyester (UL94V-0)
Standard: PBT Black
Contacts: Brass or Phosphor Bronze
Contact Plating:Au or Sn over 30μ" Ni

Electrical Charactristics:
Contact Resistance:20mΩ Max.
Insulator Resistance:5000MΩ Min.At 500V DC 耐电压Withstanding Voltage:1000V AC/Minute
Currrnt Rating:3 AMP
Working Temperature: -55℃ - 125℃
Temperature resistancet:205℃±5℃, 3s-5s max
Insertion Force: 0.4Kgf Max.Per Pair
Withdrawal Force: 0.25Kgf Max.Per Pair

Number of Pins: 4-128 Pins
