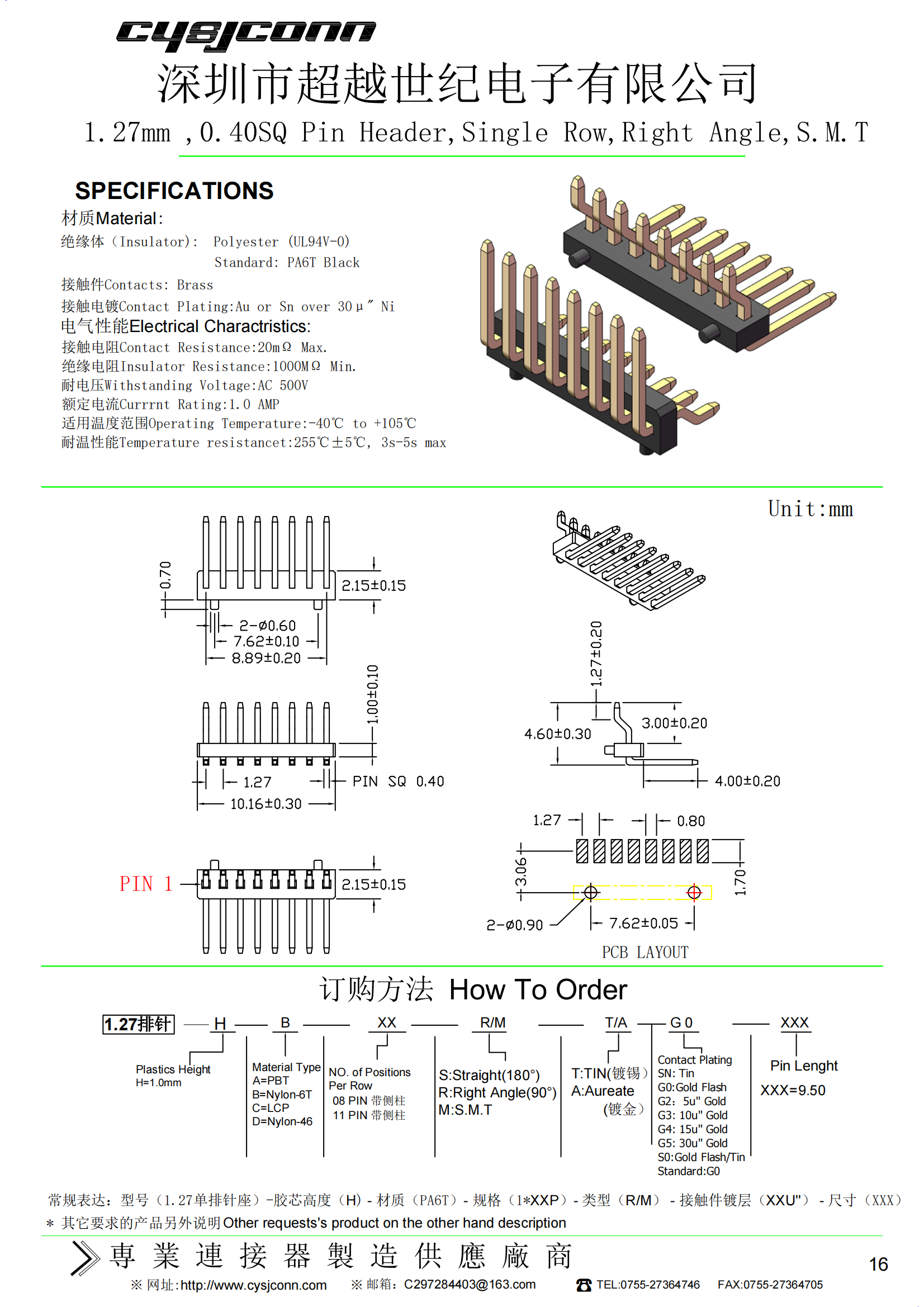

1.27mm 0.40SQ Pin Header, Single Row, Right Angle and Horizontal SMT, with Post

Product Image
Product Image
Product Image

1.27mm 0.40SQ Pin Header, Single Row, Right Angle and Horizontal SMT, with Post

Product Description


Material:
Insulator: Polyester (UL94V-0), Standard: PA6T Black
Contacts: Brass
Contact Plating:Au or Sn over 30μ" Ni

Electrical Charactristics:
Contact Resistance:20mΩ Max.
Insulator Resistance:1000MΩ Min.
Withstanding Voltage:AC 500V
Currrnt Rating:1.0 AMP
Operating Temperature:-40℃ to +105℃
Temperature resistancet:255℃±5℃, 3s-5s max
