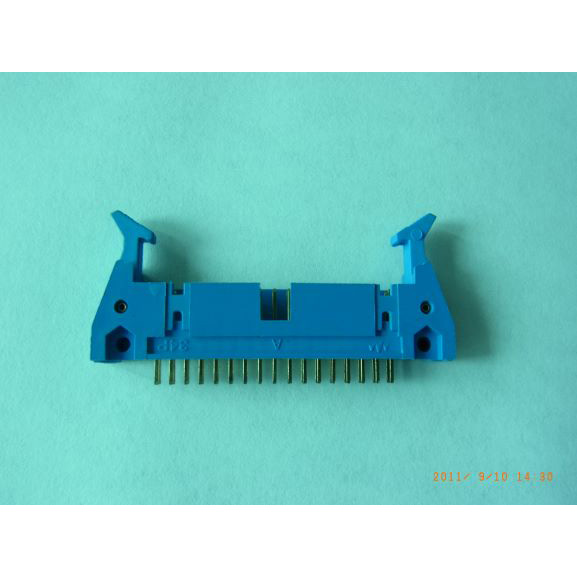

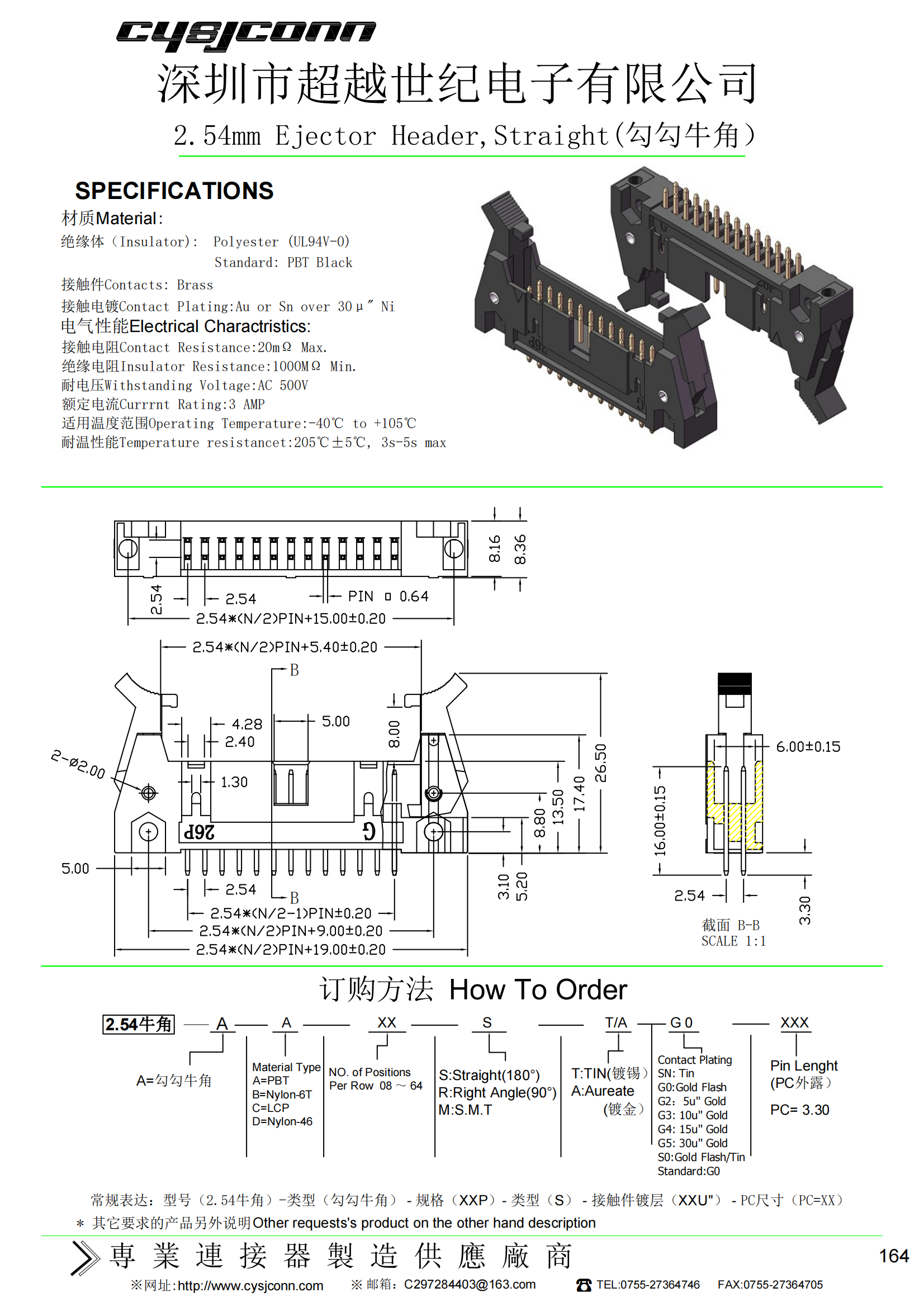

2.54mm Ejector Header, with Hook, Straight
2.54mm Ejector Header, with Hook, Straight
Product Description
Material: Electrical Charactristics:
Insulator: Polyester (UL94V-0), Standard: PBT Black
Contacts: Brass
Contact Plating:Au or Sn over 30μ" Ni
Contact Resistance:20mΩ Max.
Insulator Resistance:1000MΩ Min.
Withstanding Voltage:AC 500V
Currrnt Rating:3 AMP
Operating Temperature:-40℃ to +105℃
Temperature resistancet:205℃±5℃, 3s-5s max
