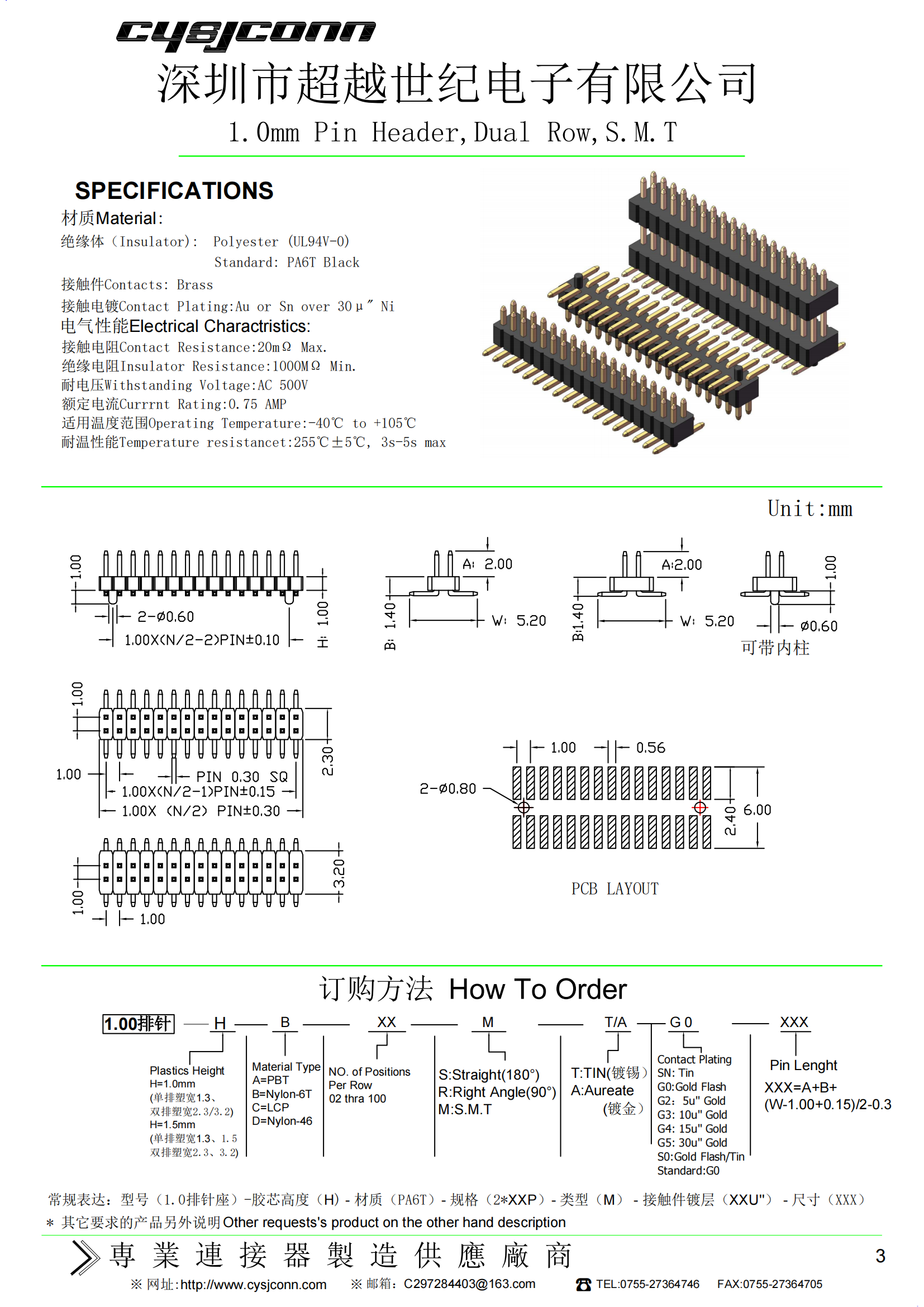

1.0mm Pin Header,Dual Row,S.M.T
1.0mm Pin Header,Dual Row,S.M.T
Product Description
材质Material: 电气性能Electrical Charactristics:
绝缘体（Insulator): Polyester (UL94V-0)
Standard: PA6T Black
接触件Contacts: Brass
接触电镀Contact Plating:Au or Sn over 30μ" Ni
接触电阻Contact Resistance:20mΩ Max.
绝缘电阻Insulator Resistance:1000MΩ Min.
耐电压Withstanding Voltage:AC 500V
额定电流Currrnt Rating:0.75 AMP
适用温度范围Operating Temperature:-40℃ to +105℃
耐温性能Temperature resistancet:255℃±5℃, 3s-5s max
